MR50 (Expansion Board) User Manual

July 15, 2022 15:21
Updated

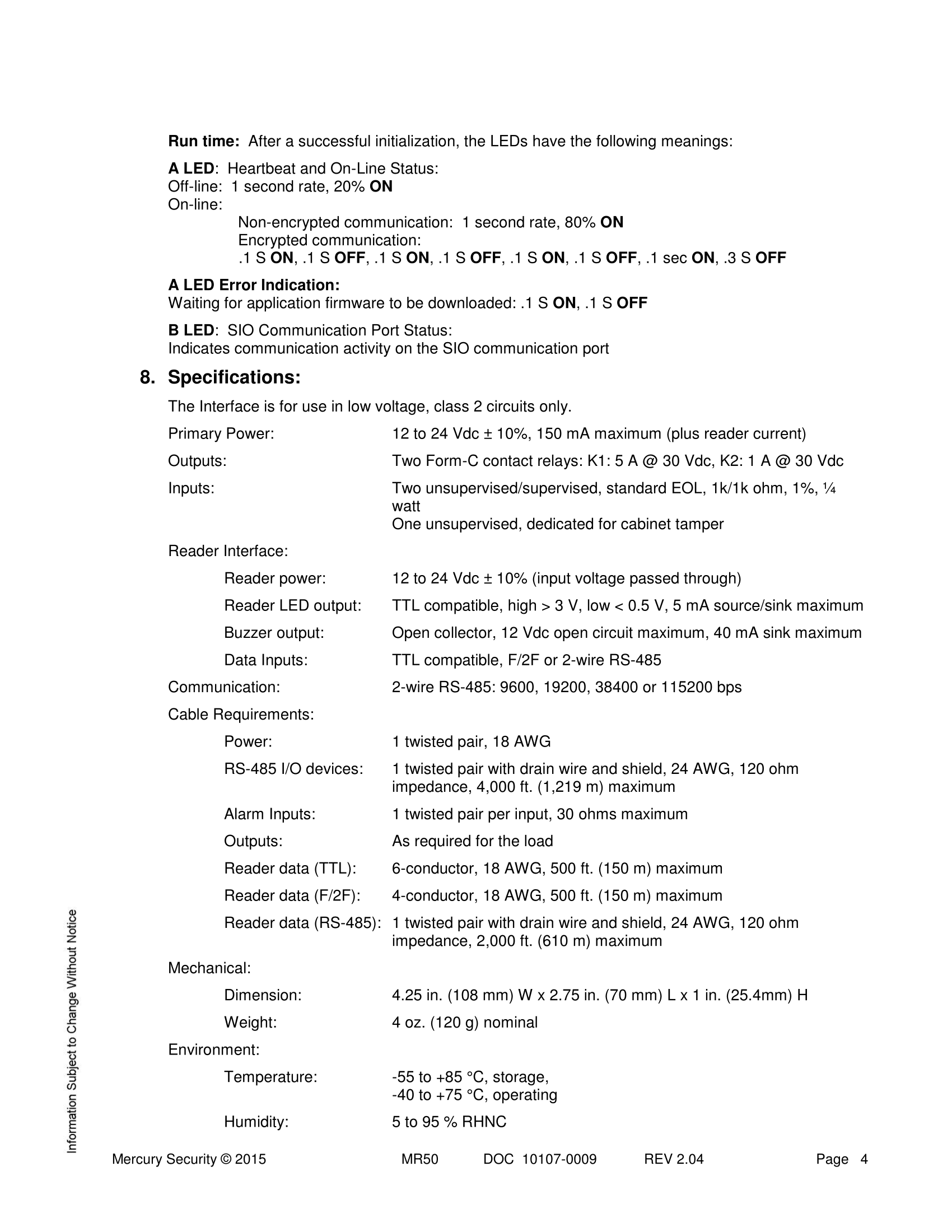

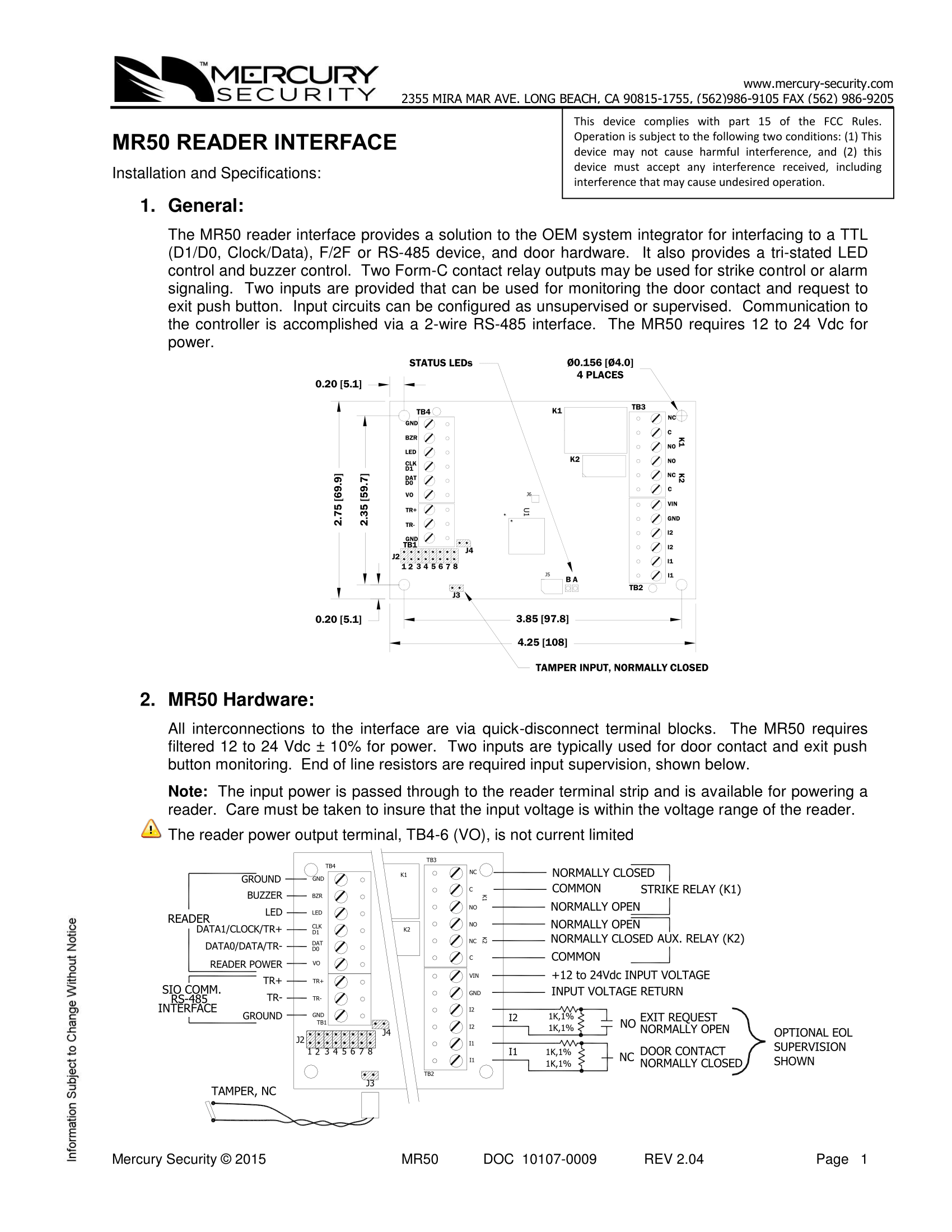

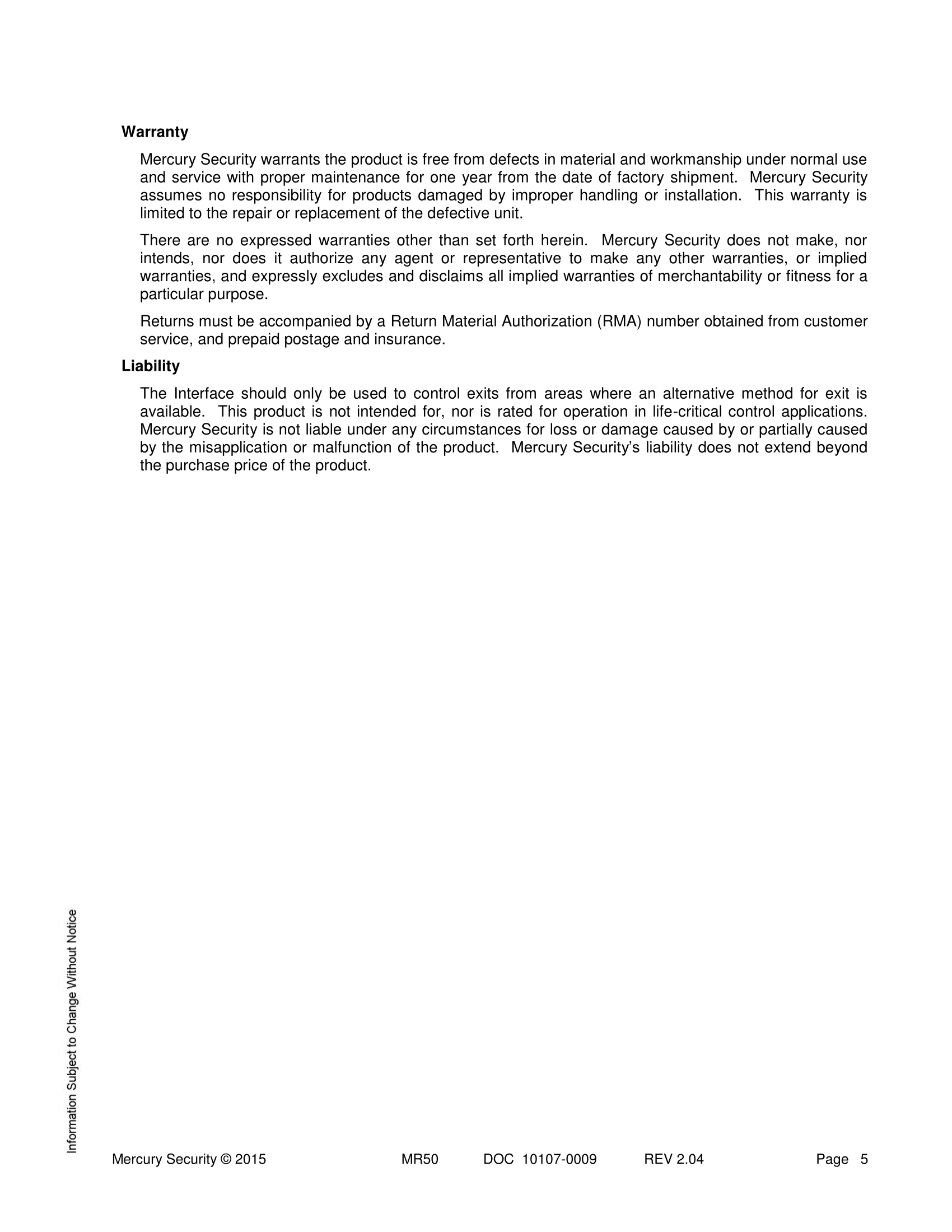

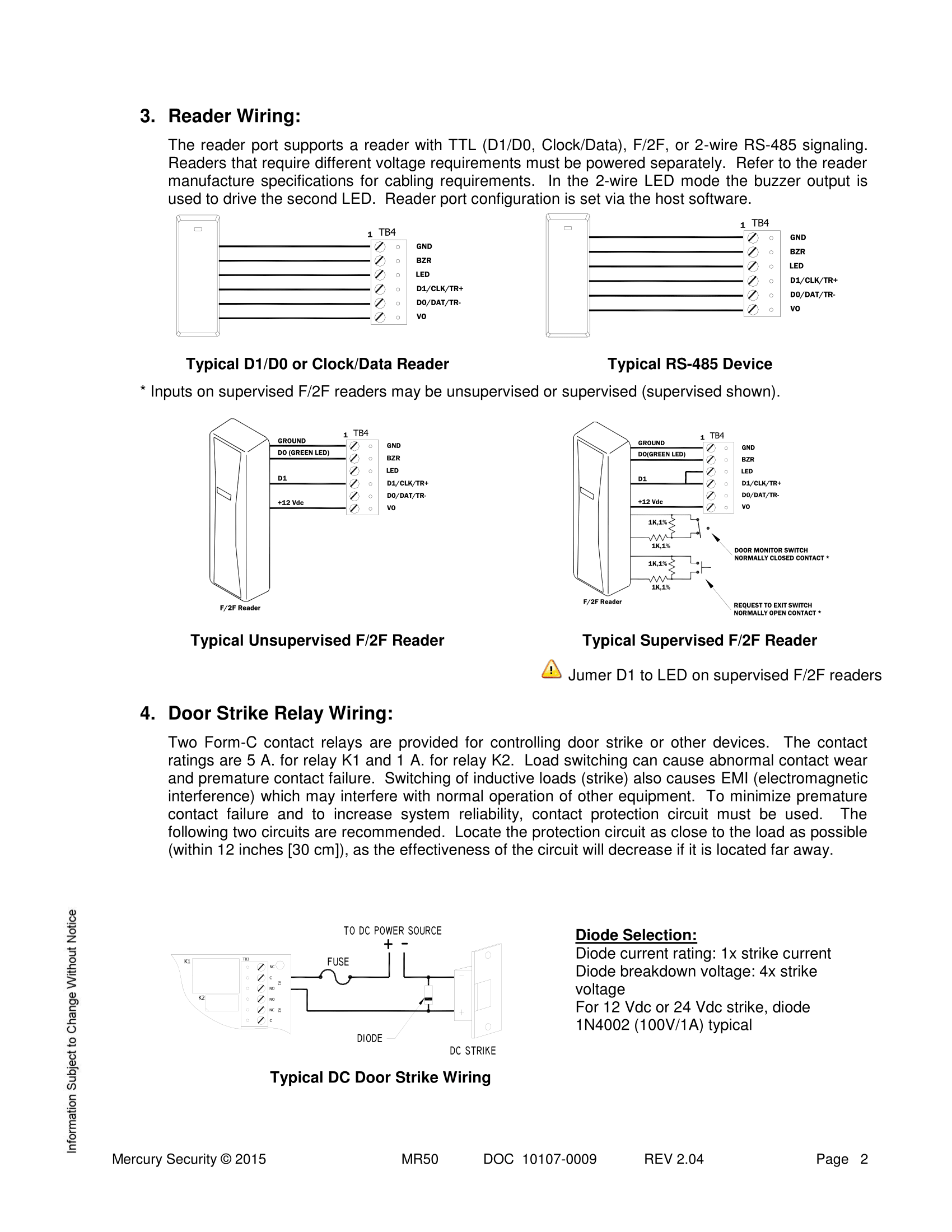

MR50 (Expansion Board) User Manual Direct Download:

MR50 (Expansion Board) User Manual-1-aDM.png
