Sure-Fi Weigand Bridge Features
• Wireless solution from Remote location (reader/door) to Controller location
• Range: up to 1 mile through obstructions and greater than 50 miles line-of-sight
• Chain multiple system pairs for extended range
• One Wiegand port (compatible with any Wiegand protocol up to 64 bit)
• Two relay outputs per side NO, NC, COM terminals (wet contacts available on the Remote
Interface)
• Two relay control inputs per side, i.e. Request to Exit input (REX), Door monitor input (DPS), etc.
• One Auxiliary digital input/output (0 to 5V input/output)
• Backup Battery charger and UPS function
• DIN rail mount or direct wall mount
• Sure-Fi APP connects via Bluetooth for diagnostics and firmware updates
Sure-Fi General Specifications
- Operating Voltage: 12VDC (9VDC to 15VDC)
- Operating Current: @ 12VDC: 0.08A (idle), 0.3A (transmit)
- Operating Power: 3.6 Watt (peak)
- Battery backup: 12V sealed lead acid (SLA) type only (not included)
- Battery Low Threshold: < 11VDC
- Battery Charge Voltage: 13.75V maximum at standby charge
- Battery Charge Current: Trickle charge, 0.125A maximum at low battery voltage level.
- Power Supply (Kits Only: SFK-CDOOR-0500): 12VDC, 2.5A
- Relay Inputs (each unit): Two relay control inputs: dry contact or digital 0 to 5VDC
interface - Relays (both units, REV 1 type): Two Form C relays, 2A 220VDC / 250VAC. Maximum
switching power 60W/ 125VA. Note: Maximum allowable combined current of both
relays 3A, or as limited by power supply - Relays (Remote REV 2 type): Two Form C solid state relays, 2A 30VDC / 30VAC
Note: Maximum allowable combined current is 3A, or as limited by power supply - Range: Up to 1 mile through obstructions. Greater than 50 miles line-of-sight
(Can chain multiple system pairs for extended range.) - Encryption: AES128
- Operating Temperature: -40°F to +185°F (-40°C to +85°C)
- Storage Temperature: -67°F to +257°F (-55°C to +125°C)
- Humidity: 0 to 95% non-condensing
- Dimensions (L x W x H): 3.54” x 4.23” x 1.28” (90mm x 107mm x 32.5mm) (without enclosure)
- DIN mount type: 35mm DIN rail (DIN46277-3) / (DIN35)
- Degree of Protection: IP20 to IEC/EN 60529
Radio Transceiver Specifications
- Transmit Power: 1 Watt (30dBm)
- Frequency Band: 902 – 928MHz
- Channels: 72 (Frequency hopping)
- Receiver Sensitivity: -133dBm
- Link Budget: 163dB

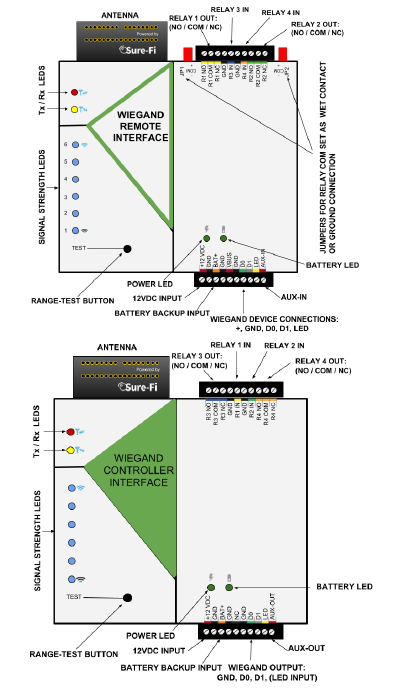

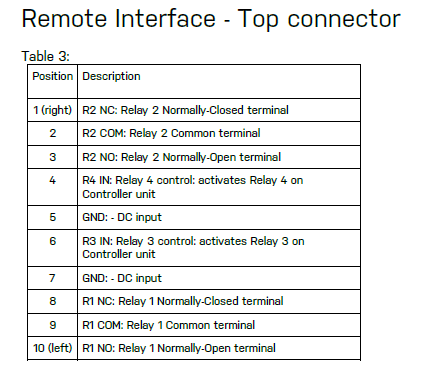

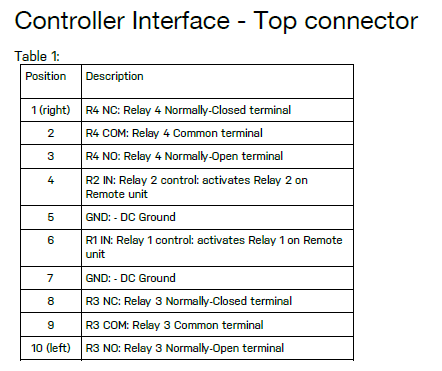

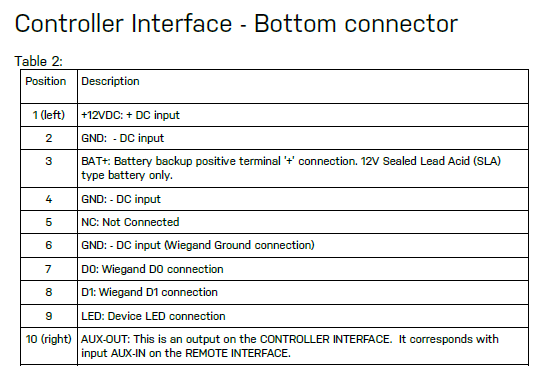

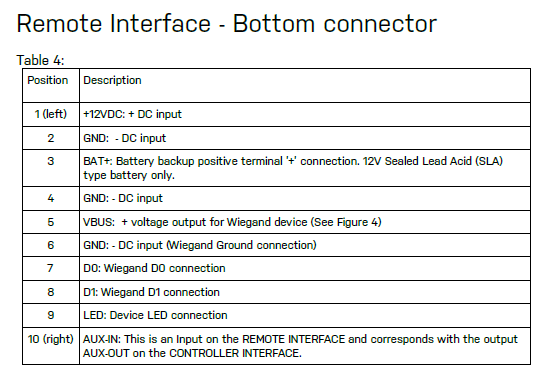

Device Overview
Providing Power
Each unit requires a 12VDC supply that can source at least 0.5A, but a 1A supply is always
recommended to ensure adequate power. (Note: Kits are supplied with a 12VDC/2.5A power supply)

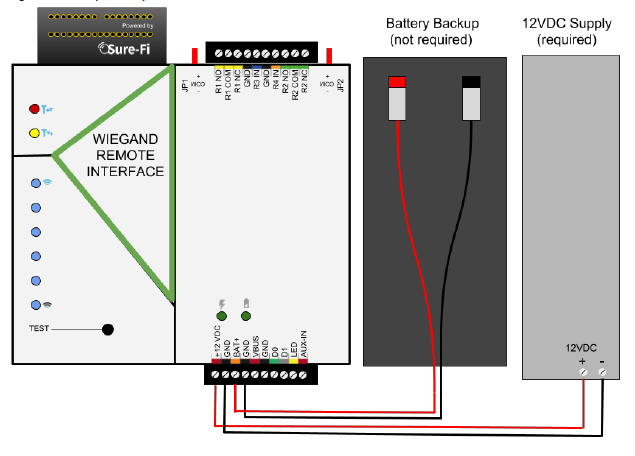

If a Maglock, Door Strike, or other device is to be powered through an on-board wet relay, then the additional power required for those devices will need to be considered when selecting a power supply. A battery backup can be connected as
shown if required for the application.
Battery Backup Charging and UPS Functionality
The Controller and Remote Interfaces both provide a charging voltage for a 12V sealed lead acid
battery backup and they also have uninterruptable power supply (UPS) functionality. The UPS will
automatically switch to the battery backup whenever the 12VIN wall power goes out and will then
switch back to the 12VIN wall power when it returns.
